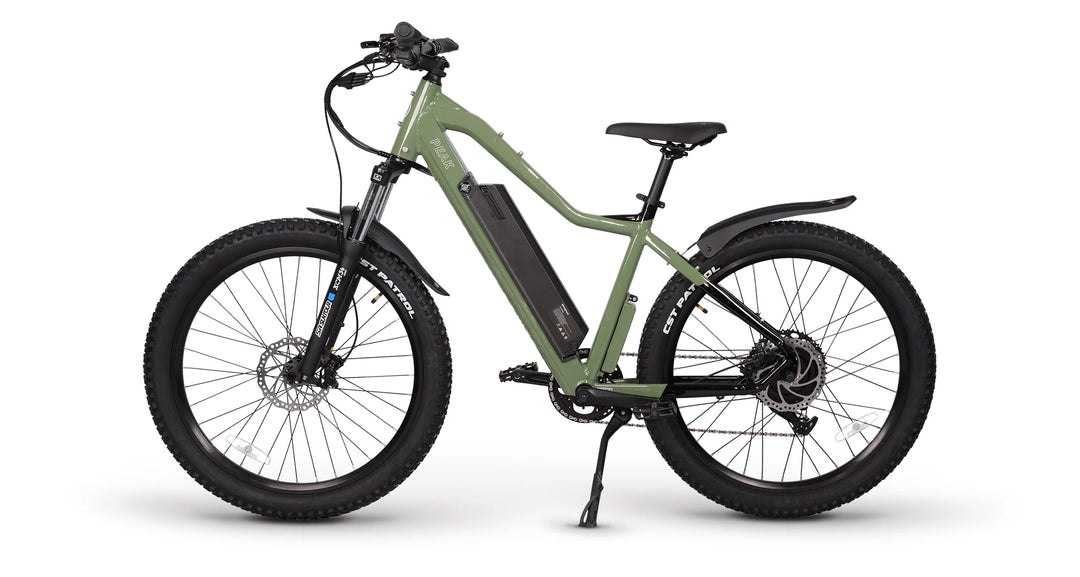

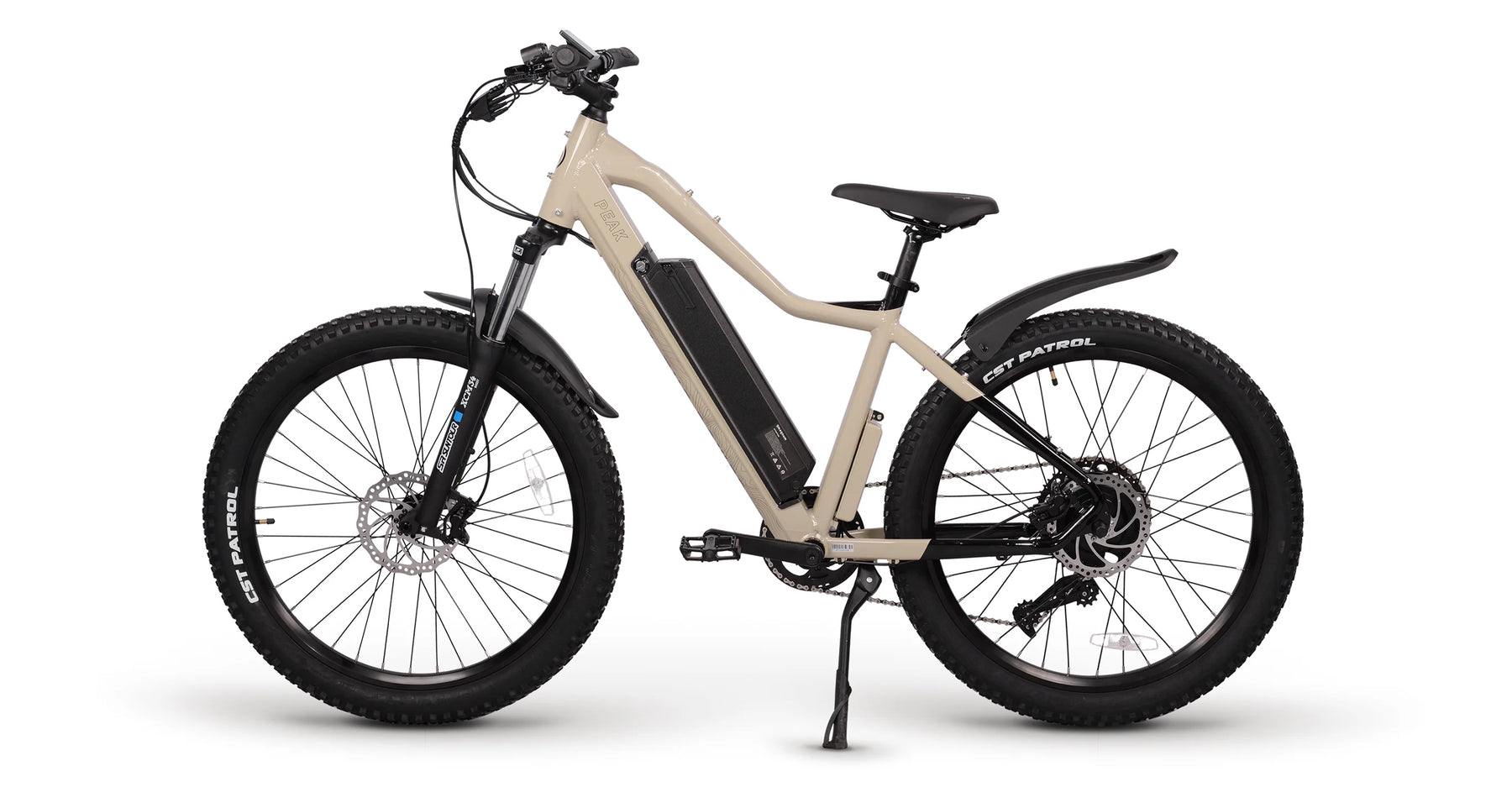

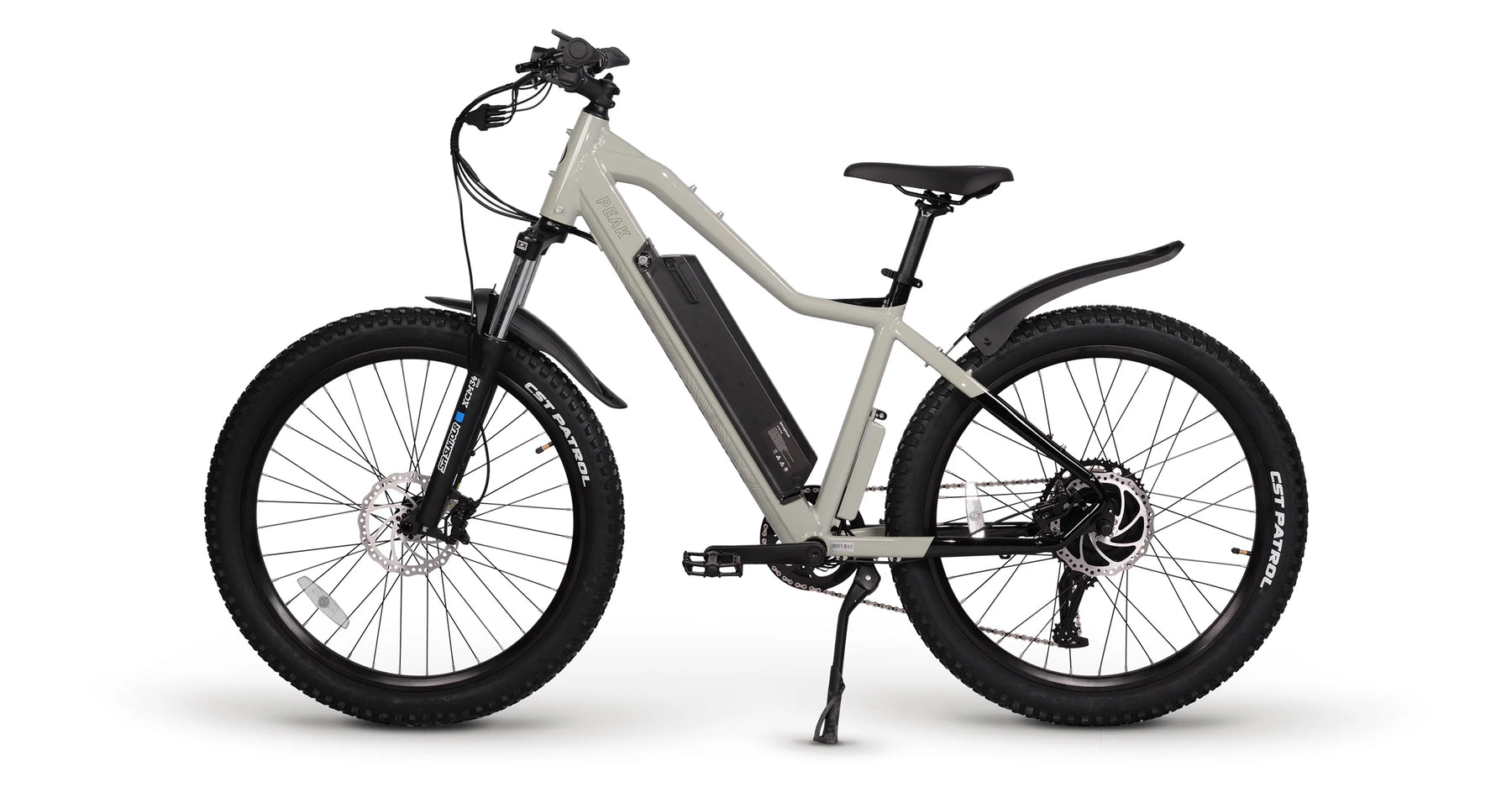

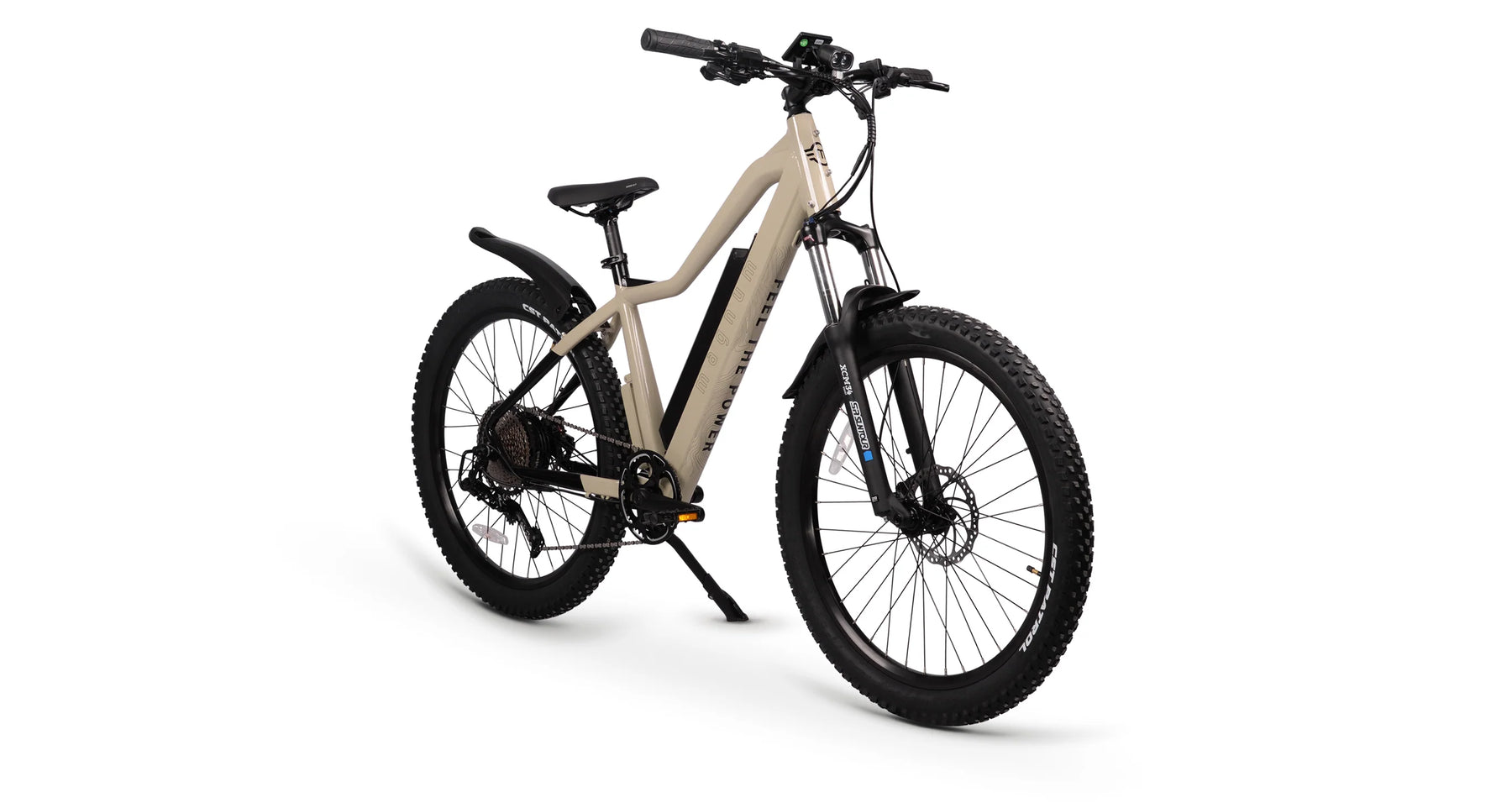

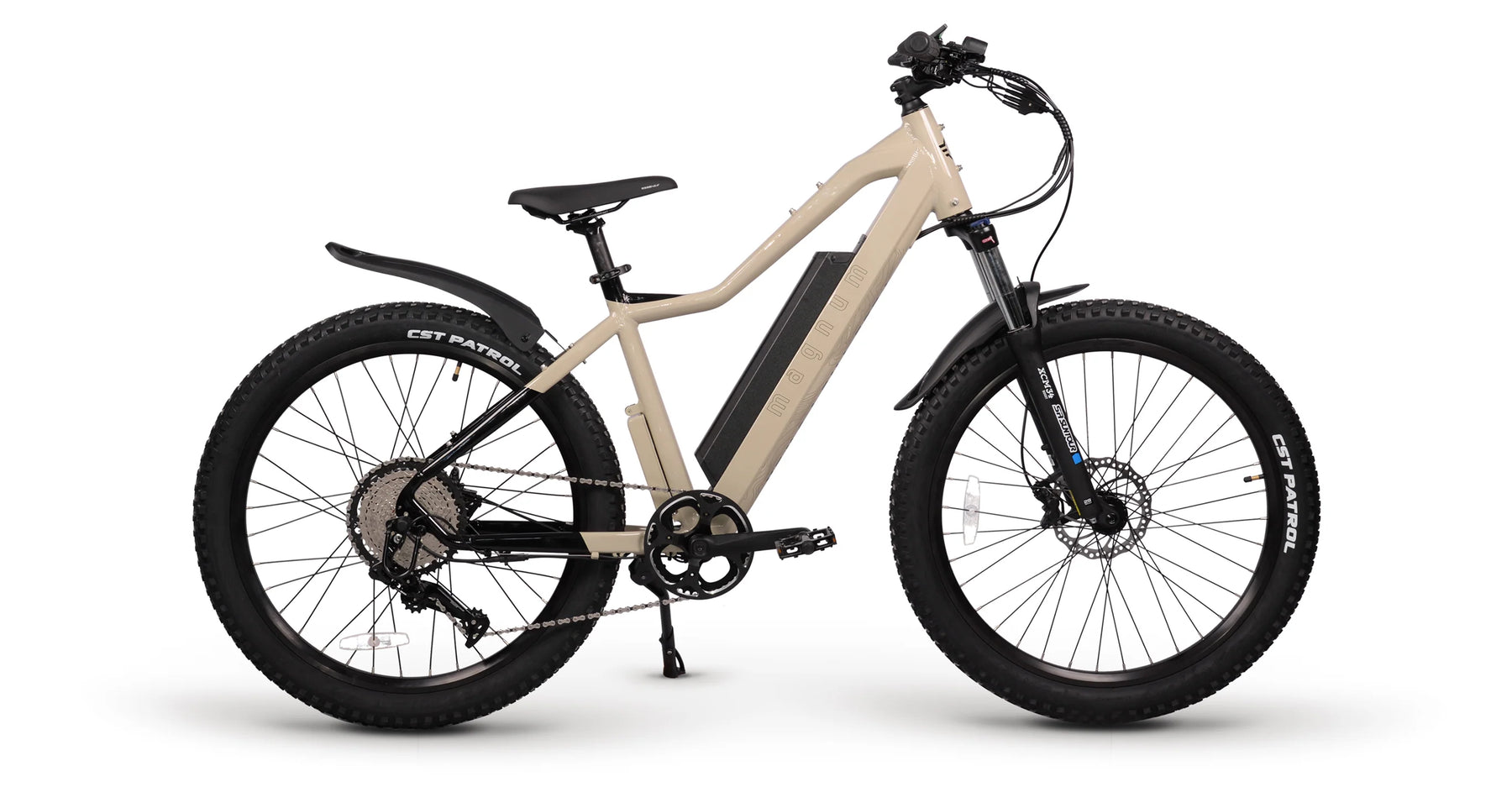

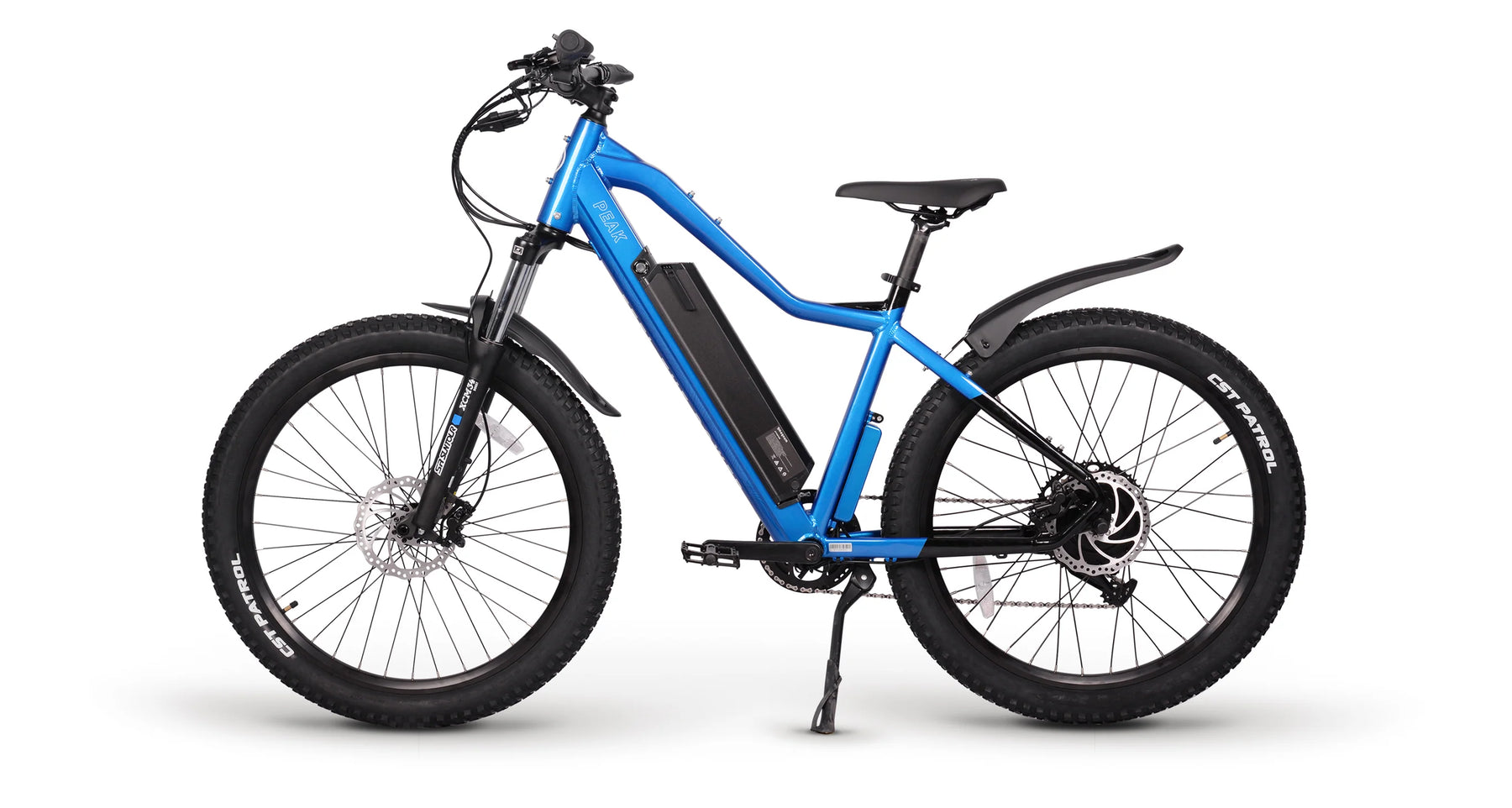

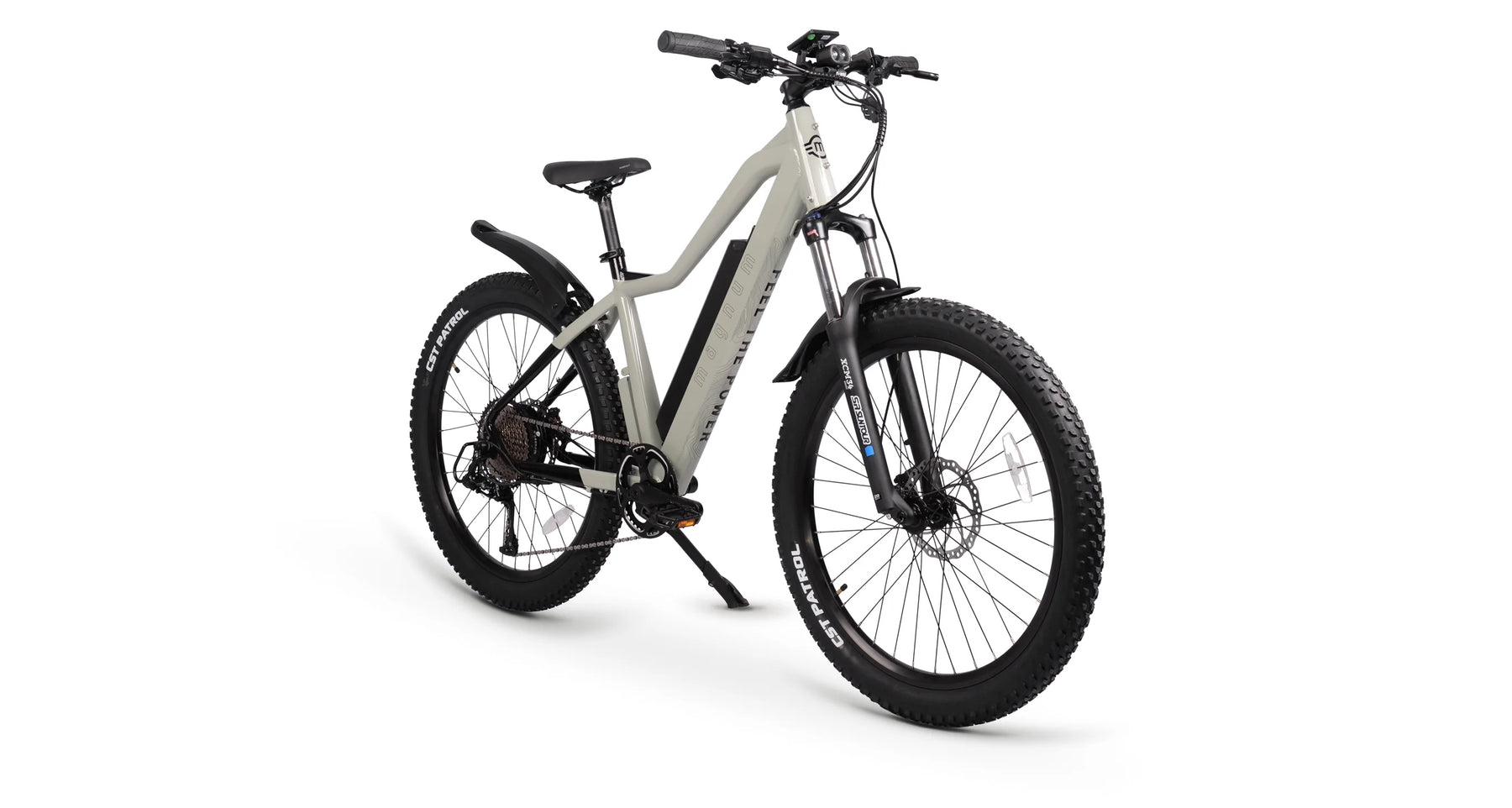

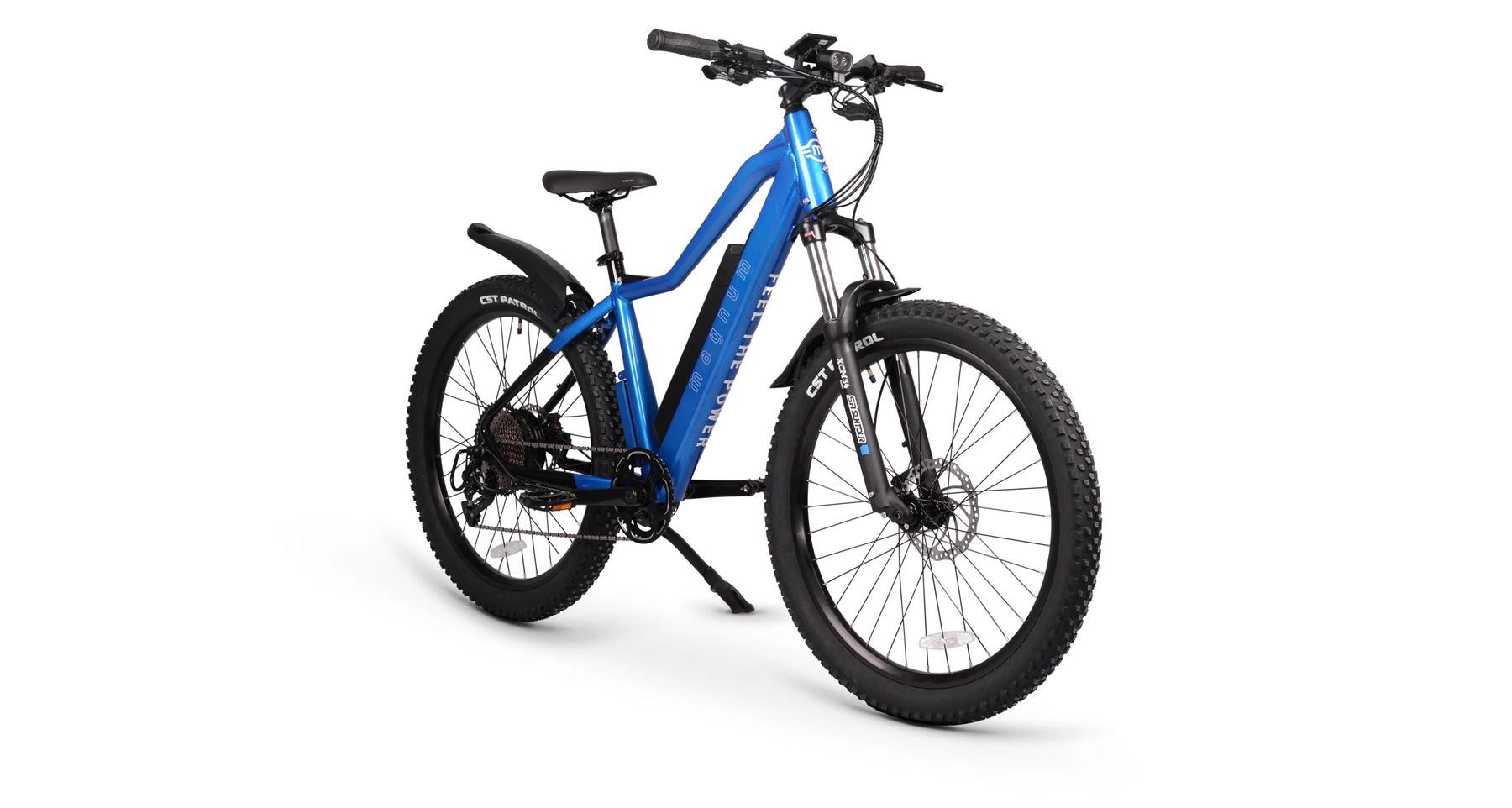

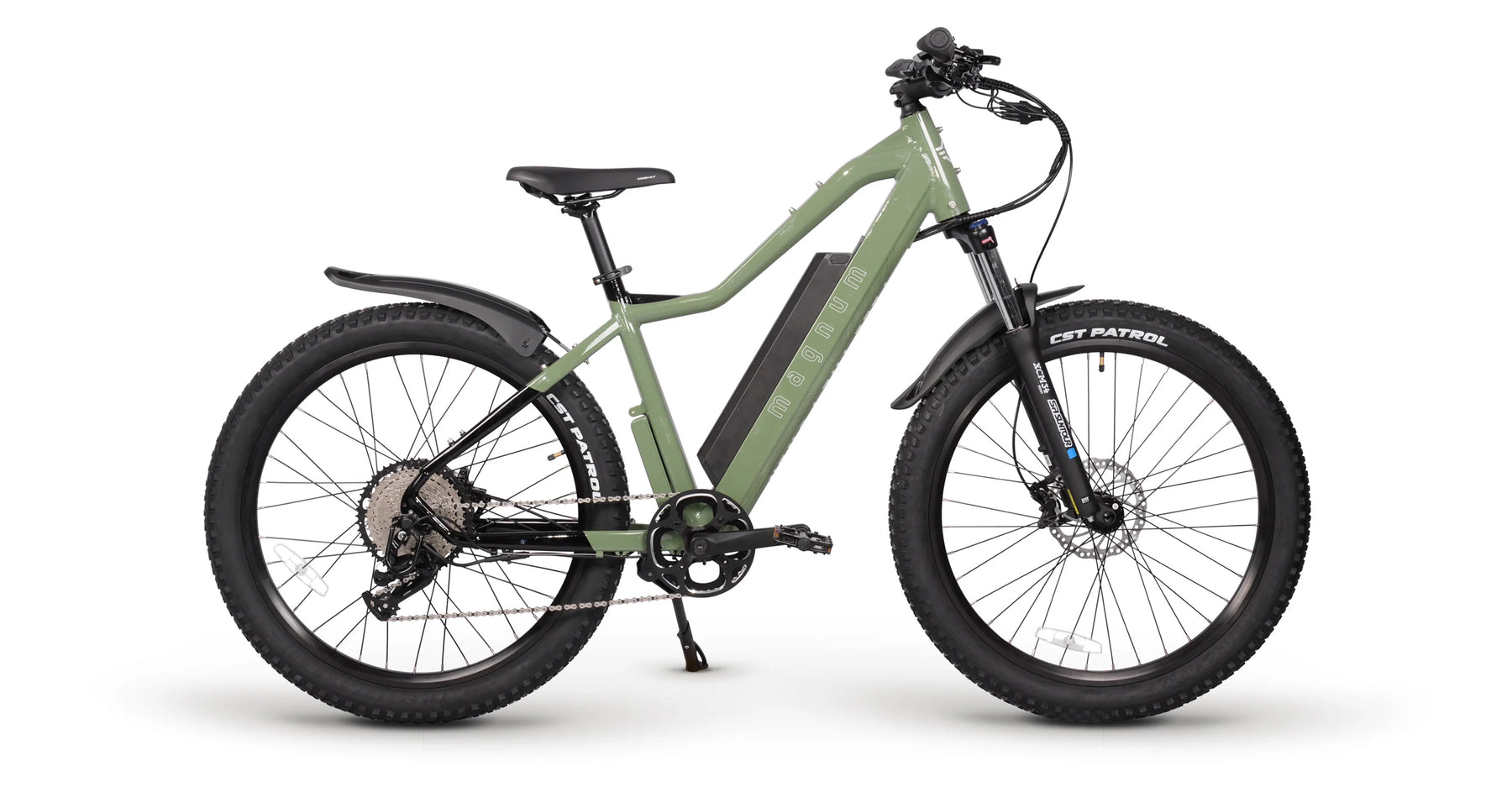

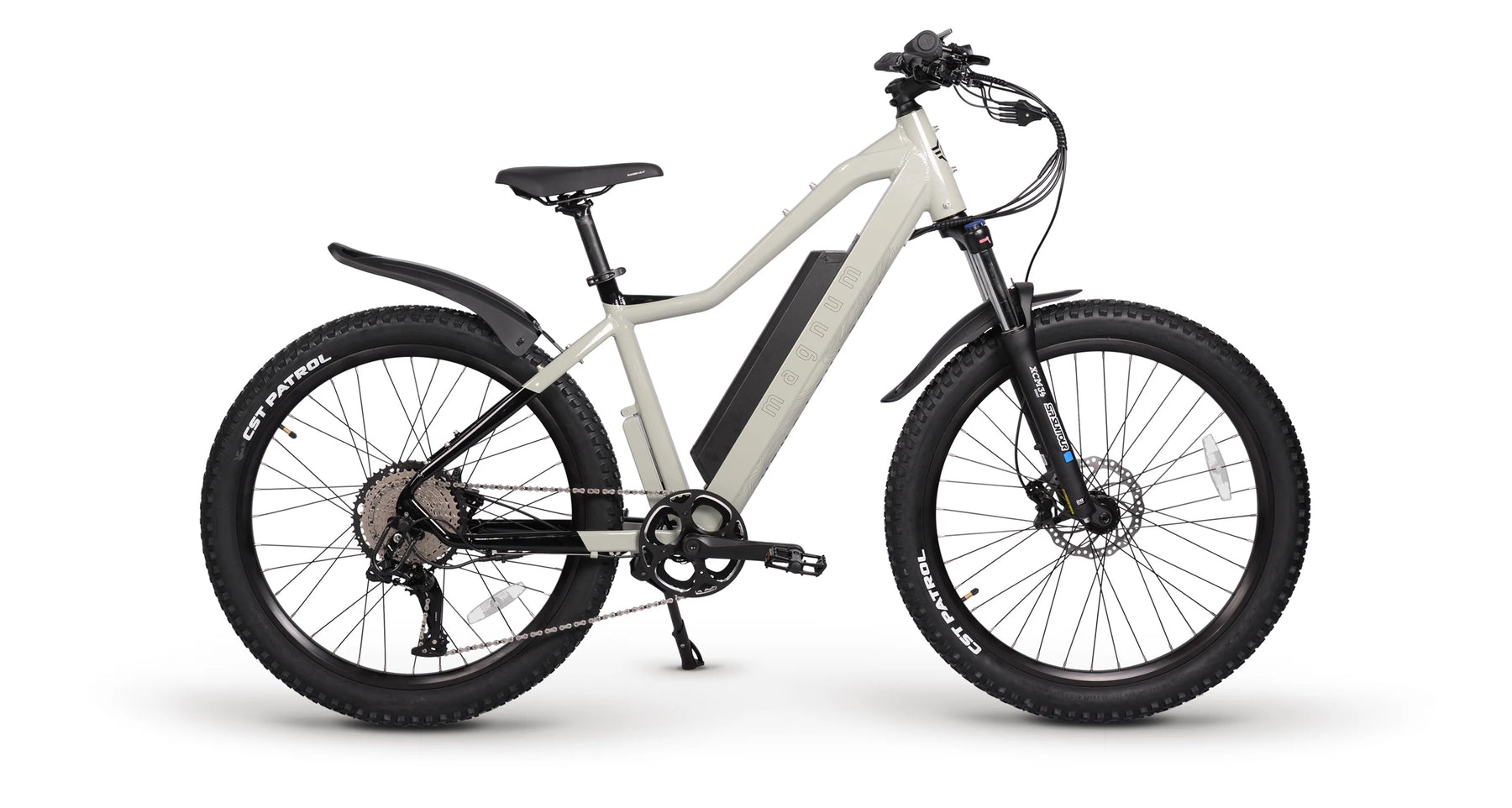

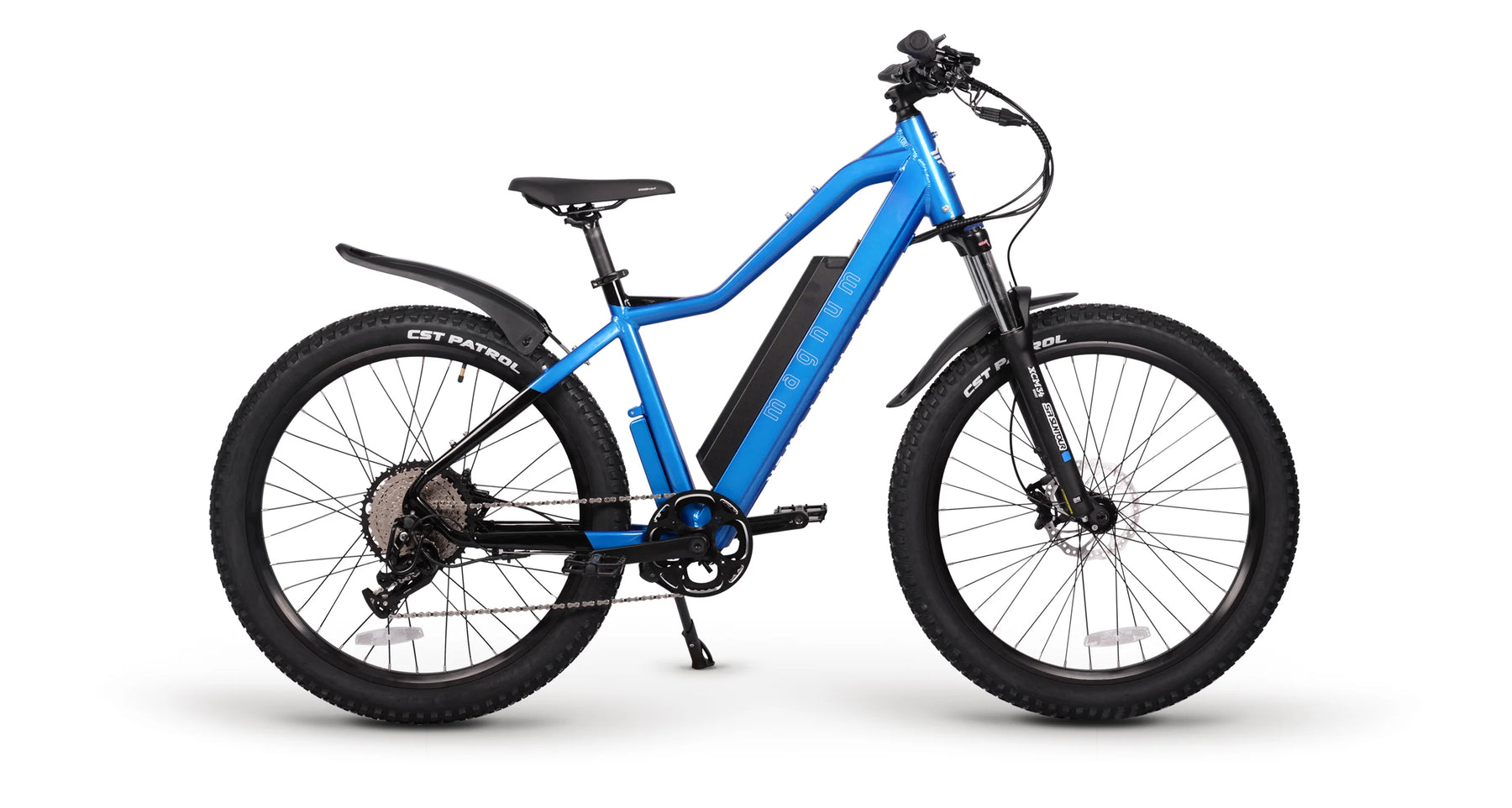

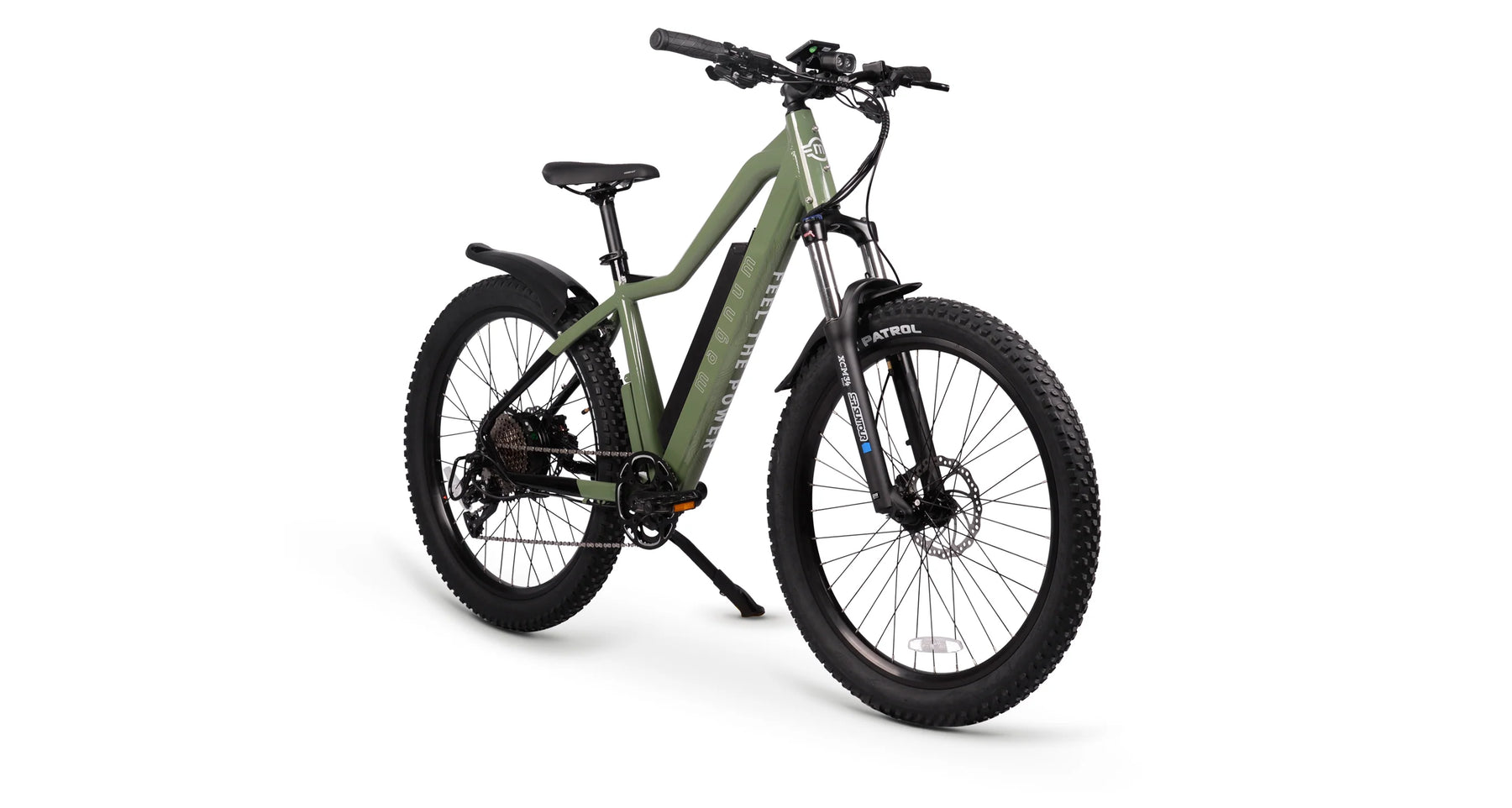

Introducing Magnum's T5 E-Bikes. The Peak T5 is the perfect trail riding partner, thanks to its combination of power from the rider and the motor and its torque pedal assist sensor. Its robust power system and wide-range drive train make it ideal for the most demanding off-road conditions.
Local Pick-Up Only
Call or text us for details at 385-449-0632
SPECS:
Category:Mountain
Class: Can be configured to a Class 1, 2, or 3 E-Bike.
Frame Type:High-step, MTB Cross-Country
Seating:Active
Perfect For: Gravel / Trails / Off-road
ELECTRONIC DETAILS:
Motor Brand: Bafang
Motor Type: Rear Hub-Drive
Motor Nominal Output: 500 Watts
Motor Peak Output: 750 Watts
Battery Brand: Samsung Cells
Battery Voltage: 48 Volts
Battery Ah: 15Ah
Battery Wh: 720Wh
Battery Chemistry: Li-NMC
Battery Charge Time (from empty): 7.5 Hours
Minimum Range: 30 Miles (48 Kilometers)
Maximum Range: 50 Miles (80 Kilometers)
Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Drive Mode: Torque Sensor Pedal Assist, Trigger Throttle, Walk Mode
Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle
Lights: Front light controlled from the display. The rear light brake activated. Front Light: 40 lux, Rear Light: 20 lux (Rear light not included)
MECHANICAL DETAILS:
Frame material: Aluminum Alloy
Frame size: 19” (48 cm)
Fork Details: XCM34-Boost
Gearing details: A11-X 11-Speed
Shifter Details: A11-X 11-Speed
Crank: Aluminum Alloy, 42T, 170mm
Pedals: Wellgo
Stem: Magnum 60mm
Brakes: Logan Hydraulic Disc Brakes
Grips: Black
Saddle: Selle Royal Essenza+
Tire Brand: CST Patrol 27.5 x 2.8
Wheel size: 27.5”
Fenders: Front and Rear Included
Chain: KMC 11-Speed
MEASUREMENTS:
Seat Tube: 19” (48 cm)
Reach: 14.5” (37 cm)
Stand Over Height: 31” (78.5 cm)
Virtual Top Tube Length: 23.25” (59 cm)
Min Saddle Height: 22” (56 cm)
Max Saddle Height: 31” (78.5 cm)
Width: 28.75” (73 cm)
Wheelbase: 45.75” (116 cm)
Length: 74” (188 cm)
Total Weight: 60 lbs (27.25 kg)
Battery Weight: 9 lbs (4.1 kg)
Recommended Minimum Rider Height: 5’6”
Max Load Capacity: 330 lbs. (150 kg)
WHAT'S INCLUDED:
Kickstand: Center-Mounted Single Side Kickstand
Bell: N/A
Charger: 48 V / 2 A
Front Rack: Optional Front Rack (Not Included)
Rear Rack: Optional (not included)
Fenders: Front and Rear Included
Accessory Mounts: Top Tube Mounts, Head Tube Mounts, Rear Rack Mounts
