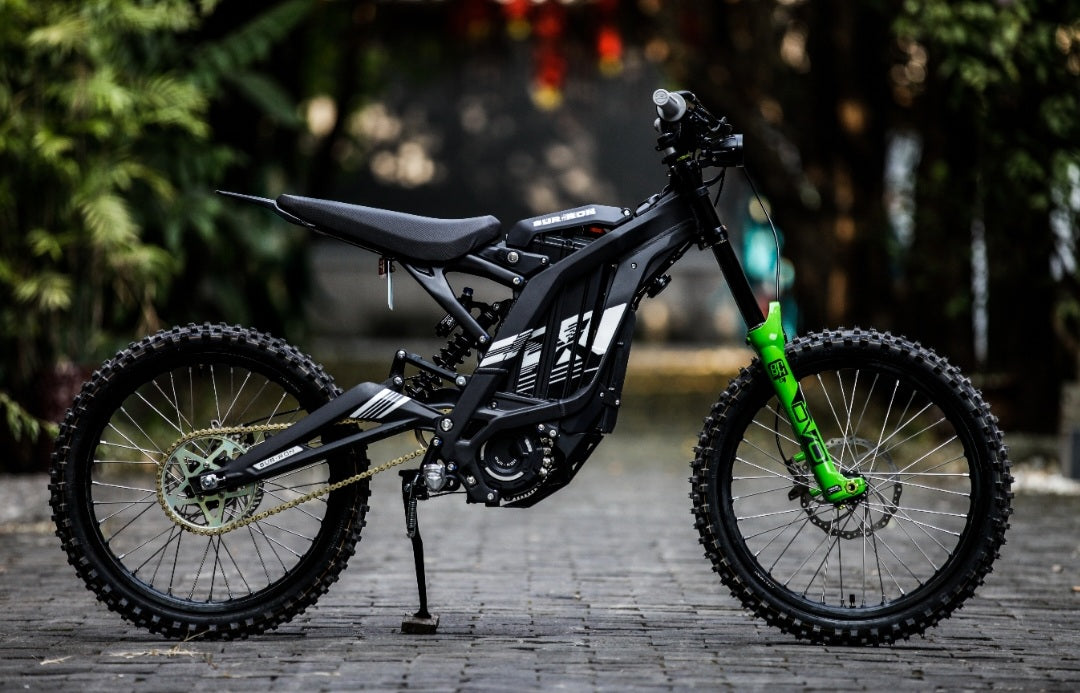

Introducing Surron Light Bee X V2 E-Bike, the Electric Light Bee X V2 is guaranteed to brighten your day after a lame day at work or school. It is light and nimble and has plenty of power to make you grin from ear to ear. With its removable 60V Panasonic Lithium-ion battery, forged lightweight alloy frame, high-end components, and ability to reach up to speeds of 31 MPH (Shhh we didn't tell you this, but you can unlock more power and speed but it's at your own risk for those thrill seekers.)
*New for 2023
-
60V/38Ah battery (new for 2023 models)
-
Dual hall sensor throttle (upgraded mid-2022)
- Revised, stronger handlebar mount
-
New paint process (reduces scuffing away paint)
-
Three color options (black, blue, silver)
We will email/text you about your order and instructions on either local pick-up or delivery options. *SHIPPING IS AVAILABLE ONLY IN THE USA!
SPECS:
Powerful yet nimble and with a climbing ability of over 45°, it offers hours of near-silent fun with a range of 20 to 60 miles per charge (depending on Eco or Sport Mode). The top speed is 45 mph and usually charges in about 3 hours with a powerful 38 AH Battery.
*Unless otherwise noted, ALL products sold from Sur Ron and authorized dealers are sold with the sole intention for off-road or race track use only. This product or products may not comply with some State, Federal, Provincial, and/or Local laws, ordinances, or regulations. The buyer takes full responsibility for the use of these products on their automobile which may or may not conform to all applicable laws and regulations for on-road or highway use.
|
MOTOR
|
|
Motor Type:
|
PMSM
|
|
Mounting Position:
|
Mid
|
|
Weight / Motor External Diameter:
|
7.0kg / 180mm
|
|
Motor Axial Length:
|
130mm
|
|
Peak Efficiency:
|
95.60%
|
|
Cooling Method:
|
Air-Cooled
|
|
CONTROLLER
|
|
Controller Type:
|
X Version Sine Wave
|
|
Dimensions:
|
240mm x 110mm x 50mm
|
|
Peak Efficiency:
|
98.50%
|
|
Power Modes:
|
Eco and Sport
|
|
MOTOR POWER SYSTEM
|
|
Rated Voltage:
|
60V (DC)
|
|
Rated Power / Peak Power:
|
3000W / 6000W
|
|
Rated Torque / Peak Torque:
|
10.2Nm / 39.00Nm
|
|
Motor Shaft Output Torque @ 1000RPM:
|
35.40Nm
|
|
Rated Rotation Speed:
|
4300rpm
|
|
Peak Efficiency:
|
97.8%
|
|
Range of Efficiency (≥80):
|
1.4Nm - 21.5Nm
|
|
TRANSMISSION
|
|
Gear Ratio:
|
1:7.6
|
|
Transmission:
|
Primary Belt & 420 Drive Chain
|
|
Belt Brand & Model:
|
German Continental Brand, 8M CXA
|
|
ELECTRICAL COMPONENTS
|
|
Horn:
|
European Standard Horn
|
|
Battery:
|
60V 34A Lithium Battery with 176 Panasonic Cells
|
|
Battery Life Time:
|
500 Cycles (and then the capacity reduces step by step)
|
|
Battery Charge Level:
|
Integrated Battery LCD Display
|
|
Charger:
|
10A
|
|
Charging Time:
|
2.5-3.5 Hours
|
|
USB Connection:
|
USB-2.1 A Single Socket
|
|
Speedometer:
|
LCD Digital Speedometer
|
|
LED Headlight & Rear Light:
|
Yes
|
|
FRAME DETAILS
|
|
|
Chassis - Swing Arm Material:
|
No. 6061 T4 & T6 Aluminium Alloy
|
|
Chassis Construction Method:
|
Forged by 6000 Tons of Pressure
|
|
Chassis Surface & Colour Processing:
|
Anodic Oxidation
|
|
Front Suspension:
|
Inverted Suspension Fork with 8" Travel
|
|
Rear Shock Absorber:
|
DNM TR Suspension Link System
|
|
Wheel Type & Size:
|
Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs
|
|
Tire Size:
|
Front/Rear 70/100-19 CST
|
|
Top Speed:
|
47 MPH 73KMH Varies depending upon load and gearing
|
|
Net Weight:
|
47kg plus battery
|
|
Max Load:
|
100kg (15.75 Stone)
|
|
Max Climb:
|
45°
|
|
Rear Sprocket:
|
48T
|
|
Side Stand:
|
Yes with kill switch
|
|
Vehicle Dimensions:
|
1870mm x 780mm x 1040mm
|
|
Min. Ground Clearance:
|
270mm
|
|
Wheelbase:
|
1260mm
|
|
Seat Height:
|
84 to 88cm
|
